Forged components

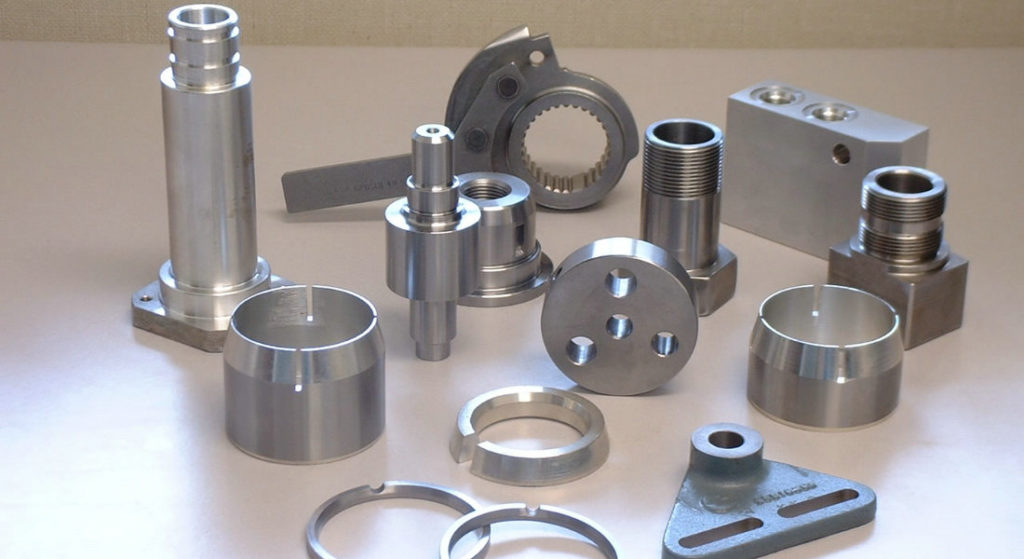

Cold forged components:
Cold forging is a manufacturing process where a bar stock is inserted into a die and squeezed with a second closed die. The deformation starts at room temperature and changes the shape and size of the initial part until it has assumed the shape of the die. At this final step, the part can reach a temperature of up to 250°C, since the friction strain rates are very high during deformation.
This is a highly automated manufacturing process and parts can be made economically. Another benefit of cold forging is the lack of grain growth and therefore perfectly aligned to the shape of the part metal grains with an exceptionally strong and resistant surface. Harshvijay Exim can supply Cold forged components in Steel, Stainless Steel and Non Ferrous metals as per the customer’s drawings.
Hot Forged Flanges and Non Standard forging
Harshvijay Exim OPC Private Limited in partnership with a leading Hot Forging manufacturer offers Hot Forged flanges and Non Standard forging in the exotic grades of Hastelloy, Monel, Inconel, Super Duplex, Titanium and Stainless Steel. Our regular Hot Forged flange and non-standard forgings are supplied in following material:
Stainless Steel Grades
- ASTM Standard : 304/304L, 316/316L, 316Ti, 321, 405, 410, 420, 416, 431, 17-4PH, 15-5 PH, 904L, 317L, Nitronic 90
- EN Standard : 1.4307, 1.4404, 1.4571, 1.4541, 1.4021,1.4104, 1.4057, 1.4542 and more
- Duplex & Inconel :F51, F60 F53, F55, 1.4462, Monel 400, 800, Inconel 625, 718 & 825 and more
- Carbon Steel & Alloy Steel : A105, SA266, LF2, LF3, EN8, EN9, EN26, 4130, 4340, 4140, 8620, 8630, F1, F5, F9, F11, F22, F91, F6NM, 42CrMo4, 16Mo3, 25CrMo4 and more..
- Titanium : Grade 1, Grade 2, Grade 3, Grade 4, Grade 5
Hot Forged Products range
• Flanges Size range from ½’’ to 60’’
• Customized Forgings up to 2000 mm/5000 KG i.e. Tube Sheets, Gear Blanks, Shaft , Multi Step Shaft, Flat bars, Forged bars, Valve Casing, Assembly roll
• Forged Ring up to 2000 mm Diameter/500 mm Thickness

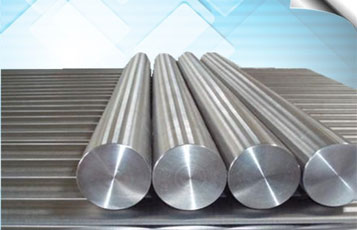

• Round Bar up to 800 mm Diameter/6000 mm Long
• Marine Forge products : Rudder Stock Assembly, Nozzle Support, Trunk Boss, Shaft Holders, Winch Assembly, Trigger Assembly, , Wheel assembly for dry port,
• Oil and Gas Industries : Tees and Crosses, Valve, Chokes, Flanged connectors, Threaded Connectors, End Connectors,
